400 Watt 24 Volt Wind Turbine Generator + 240W Monocrystalline Flexible Solar Panels + Solar Wind Hybrid Controller,640W Solar Wind Off Grid System for Greenhouse

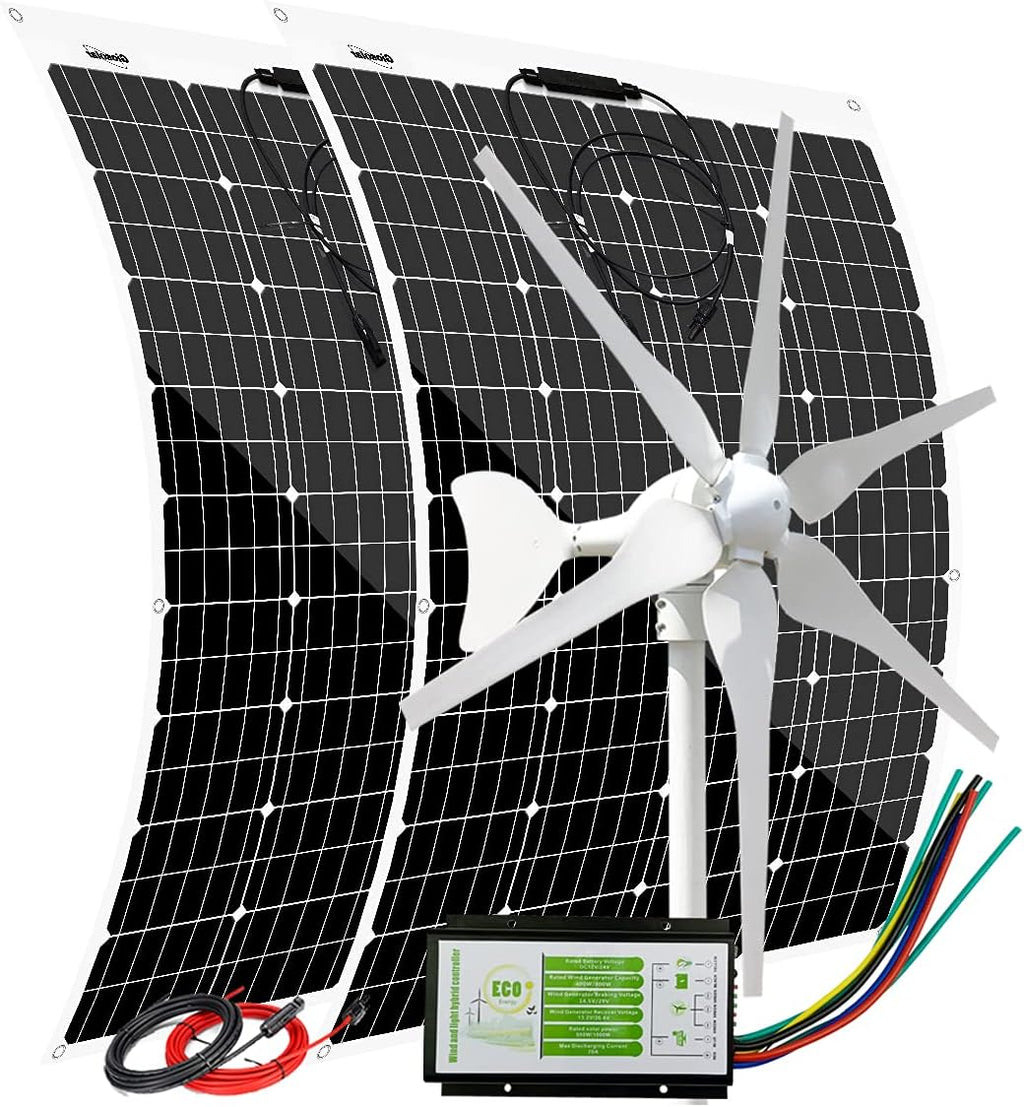

The Giosolar 640W 24V Solar Wind Hybrid kit includes:
-2pcs 120W Flexible monocrystalline solar panels attached with 90mm of solar cable with waterproof M/F connectors
- 1pc 400W Wind Turbine Generator(Pole NOT included)
- 1pc 12V/24V Hybrid charge controller
- 1pc 5M solar cable with connectors ( Red about 2.5M, Black about 2.5M)
- 1 Set of Branch Connectors
120W Solar Panel Specifications:
-- Maximum Power: 120W
-- Optimum Operating Voltage (Vmp): 18 V
-- Open-Circuit Voltage (Voc): 21.6 V
-- Optimum Operating Current (Imp): 6.67 A
-- Short-Circuit Current (Isc): 7.23 A

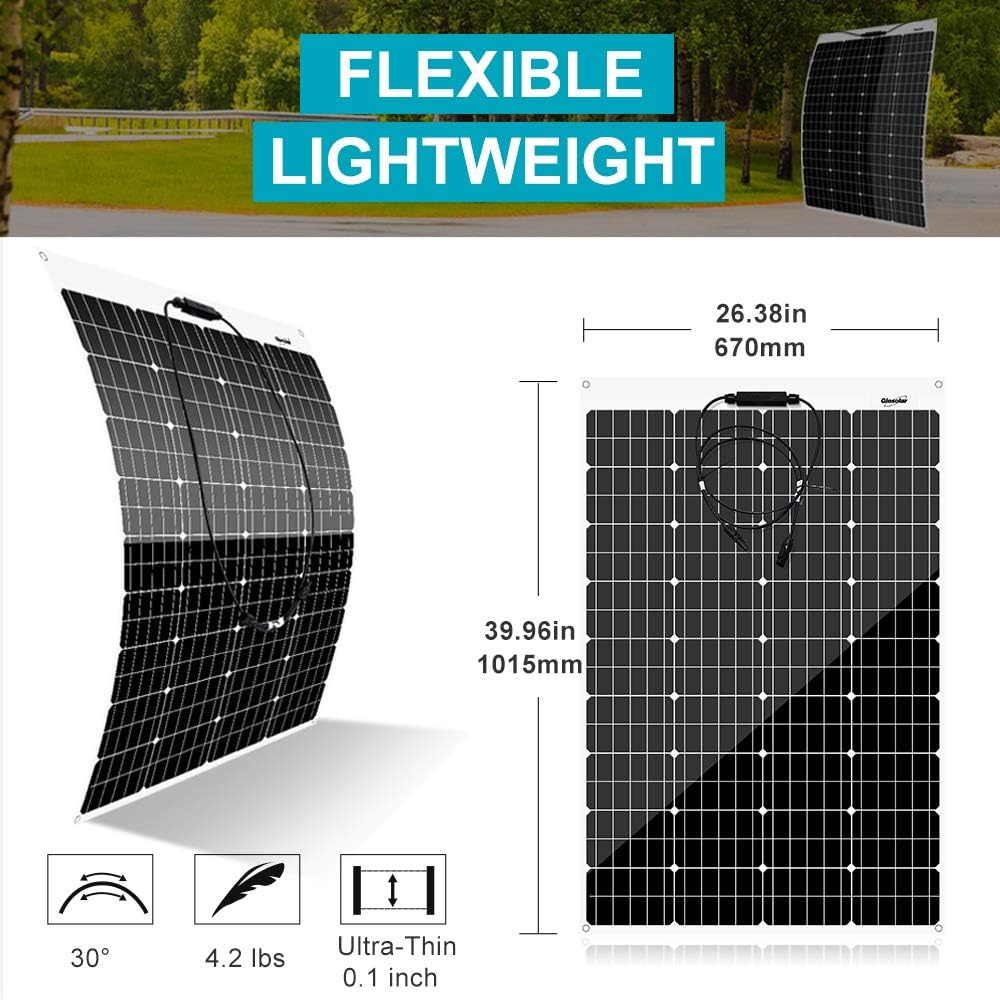

-- Dimensions: 1015*670*2.5mm / 39.96 X 26.38 X 0.1 In
-- Weight: 4.4lbs (2.2KG)
-- 90mm of special cable with connectors attached
400W Wind Turbine Specification:
Nominal Voltage: DC 12-24V
Cut-in Wind Speed: 2.5m/s
Rated wind speed: 10.5m/s
Maximum Wind speed:35m/s
Rotor diameter: 1.2M
Tower diameter: Suggest more than 48mm
Altutude of towe: 4.5M-10M
Net weight: 17.64Ibs (8kg)
Additional details
- Material Type : PET
Features & Specs
- Amperage Capacity : 6.67 Amps
- Connector Type : USB
- Efficiency : High Efficiency
- Maximum Power : 400 Watts
- Maximum Voltage : 24 Volts
- Special Features : roof
Item details
- ASIN : B0991RCL52
- Brand Name : Giosolar
- Included Components : Flexible Solar Panel
- Manufacturer : Giosolar
- Manufacturer Part Number : GSN-AW424+2AFPV+HY2+T5M
- Model Number : GSN-AW424+2AFPV+HY2+T5M
- UPC : 745396896706
Measurements
- Item Weight : 8 Kilograms
